Quick Details

  • Type: Faucet Cartridges, for faucet cartridge
  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Xing Tai Long
  • Model Number: XTL-AD23, ceramic disc
  • Material: Ceramic
  • Shape size: Optional
  • Frictional times: 300, 000 to 500, 000
  • color: white
  • Brand: Xing tai long
  • Function:: valve core
  • Hardness/Flatness/Roughness: 1100Hv5/0.6μM/Ra0.25μM
  • Installing Mode:: G1/2
  • Used: Tap ceramic disc

Packaging & Delivery

Packaging Details Polybag+Pallet

   G1/2" Ceramic disc cartridge





Product Description











Specification:

  • OD: 12.5mm---16.2mm ceramic discs
  • The frictional times is 300, 000 to 500, 000
  • Rigidity is 84~86 HRA
  • The thickness tolerance is less than 0.05mm, the diameter tolerance is less than 0.05mm





Model NO.:ceramic disc

Brand:xing tai long

Type:11.5-32mm ceramic disc



Technical Data:

                                         physical analysis sheet for 95%Al2O3:

 Densityg/cm33.6
Substance CharacteristicWater Absorption O
Sinter Temperature 1710
Physical CharacteristicHardnessHV≥12
Bending StrengthMpa≥310
compressive strengthKgf/cm225000
Elastic ModulusGPa 300
fracture toughnessMap.m3/23 to 4
 Max Using Temperature 1450
Thermal CharacteristicCoefficient of Thermal Expansion1X 10-6/°C   8
 heat-resistant TemperatureT()220
Thermal ConductivityW/m.k(25-300)24
  20  >1012
Volume Resistance100 >.cm1012-1013
Electric Characteristic  300 >1010
Dielectric StrengthKV/mm18
Dielectric Constant100MHz(E)9.5





Main advantage:

95%Al2O3 ceramic discs,mailly applicated to temperature modulatory valve,conversion valve,modulatory valve of surf and massage bathtub,LPG valves



Good hermetical, compressive resistance,flexual resistance,using longevity will be above 500 thousand times.





Technique requestment of ceramics

Sealing face of ceramic disc

Hardness

≥1050HV5

Roughness

≤Ra0.2um

Flatness (light band)

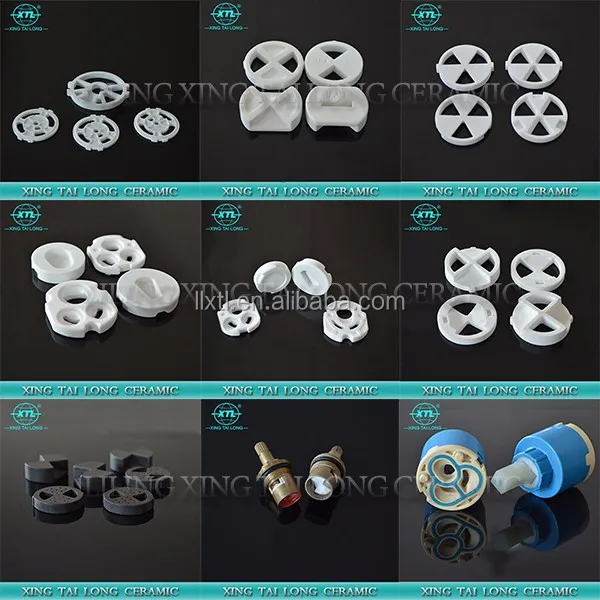

The sample pictures of tap ceramic disc:




Packaging & Shipping



Packaging of ceramic disc: PE bag inside outer carton(930*630*230mm),finally make the wooden pallet(950*950mm 950*1000mm) or according to your requirement

Shipping of ceramic disc :  delivery within 15 days after confirm the order.


Company Information



Liling Xingtailong  is a modern enterprise management company, who devote themselves to the service of product research and development, construction and maintenance.



Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries.










Our Services





Why choose Xingtailong?



High puriy material make sure high max working temperature,



Tight tolerance make sure the right installation.



Large quantity in stock ensured fast delivery.



Large capacity reduce materical prices.



Our service of Xingtailong:



Inquiry response: Your inquiries will be replied in 24 hours.



Sample support: Two free samples are available in 3~5days.



Delivery time: Your shipment will be loaded in 15~25days.depends on quantity.



Payment term: T/T, L/C, D/P, D/A, Western Union (Sample only) We can supply the products according to customer's drawings, samples and performance requirement.




FAQ





Please follow the using specifications to expand the working lifetime and better

the heat conductivity of ceramic disc.

A piece of instruction paper will be found in ceramic disc,If manual book is

required, please notice in advance.



If any questions please feel free to let us know anytime.
